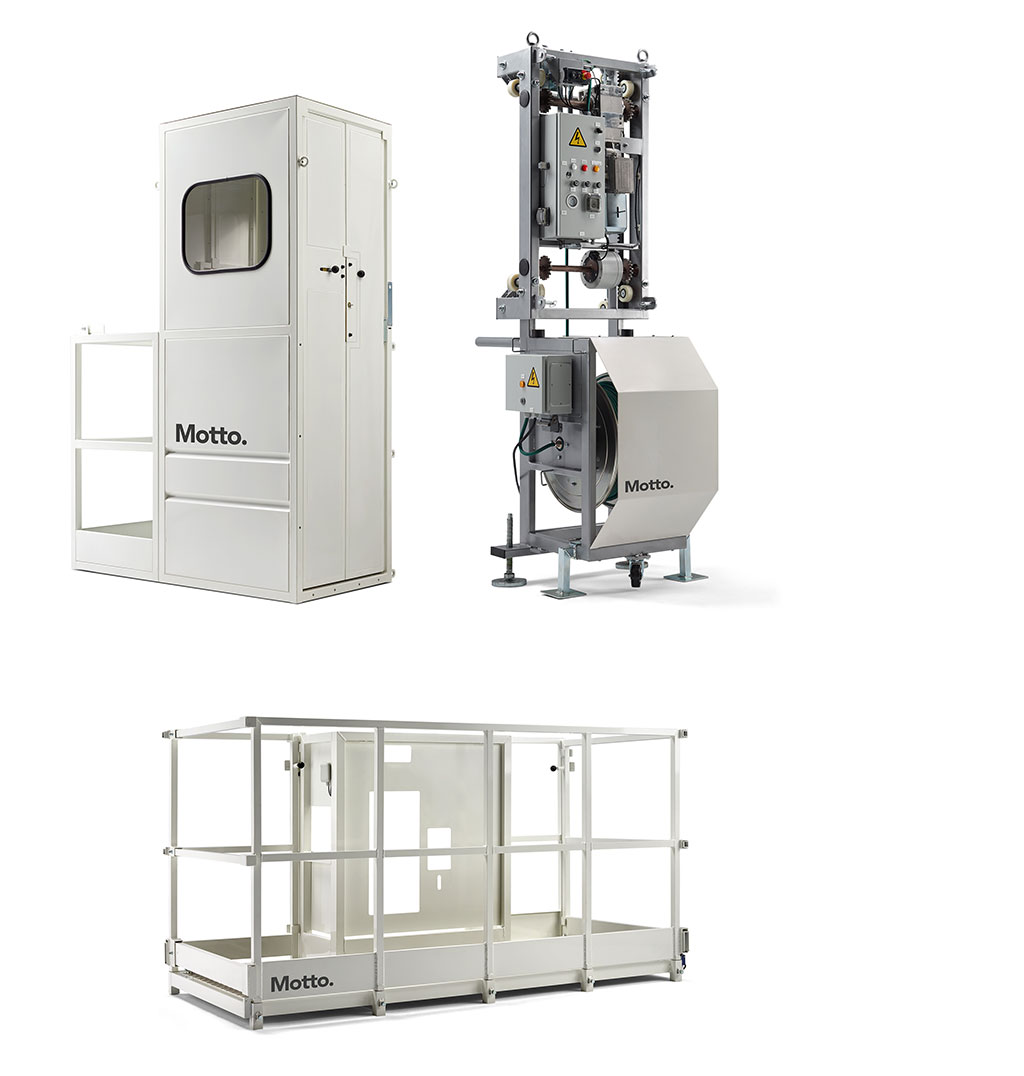

| Tower crane lift | Assembly platform | |
|---|---|---|
| Max load capacity |
225 kg | 350 kg |
| Travelling speed | 22m / min | 12 m/min |
| Cabin / platform dimensions | 790 x 670 x 2040 mm | 2250 x 1000 x 1100 mm |
| Number of persons |
2 persons | |
| Standard max height |
150 m (with standard ladder) | |
| Mast |
Aluminium ladder– 2000 x 545 mm – peso : 22 kg |
|
| Distance between wall ties |
4m | |
| Power of the motor |
2,2 kw | |
